Storage NAS and SAN appliance for block and file sharing, allowing
users to access shared files and folders, improving productivity
and helping servers with low disk space or diskless.
Explore all specs of Pulsar Series today!
Learn More
Buy Now
Why Pulsar Series?
-
File Sharing, Backup Hybrid
-
Virtualization SSD
Pulsar R1-435
Compact 1U form factor for easy deployment and expandable up to 128 drives.
Powered by hardware RAID controller and dual 10Gb/s ethernet ports (built-in), improves fast access to data and I/O loads in NAS and SAN environments.
Four disk bays allow you to start small and grow as needed.
Suitable for companies that need disk space for file sharing and also for SAN environments.
Optionally, it can be equipped with two Fibre Channel ports to be connected in SAN.

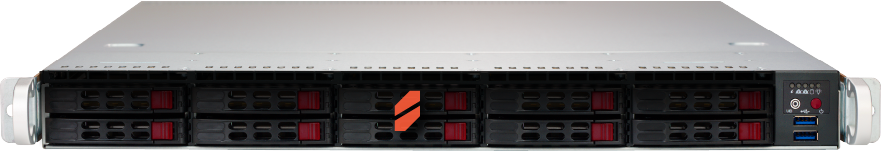

Pulsar R1-1025
Compact 1U form factor with 10 built-in drive bays allowing for large initial storage capacity and growth as needed up to 128 drives.
Using hardware-controlled RAID technology and dual 10Gb/s ethernet ports provides fast access to data.
Designed for companies that already have a large amount of data and need to interconnect their existing SAN structure by centralizing their data sharing.
Optionally, it can be equipped with two more 10Gb/s ports to improve performance or two Fibre Channel ports for SAN fibre connections.
Processing
Built with 8 storage cores, improves file and block level of data sharing.
RAID Levels
Equipped with raid hardware controller, with minimum 2 Gigabytes of cache and an power backup unit to prevent data loss in case of power failure.
Supporting raid levels 0, 1, 5, 6, 10, 50, 60 to adapt any needs and delivering huge capacity and also data protection.
Scalability
Base system equipped with 4 hot-swap disk bays on Pulsar R1-435 and 10 on Pulsar R1-1025, allows to be scalable up to 120 hard disk bays with additional JBOD enclosures.
Connectivity
With dual 10GbE ports, allows fault tolerance connection with huge speed data transfers.
Pulsar Series, could also be equipped with more network ports with speeds 10GbE, 25GbE or Fibre Channel ports of 4Gb/s or 8Gb/s.
Full Specifications
|
Pulsar R1-435
Best for File Sharing and Backups
|
Pulsar R1-1025
Best for Virtualization
|
|
| Chassis | 1U Rackmount | 1U Rackmount |
| Drive Bays | 4x 3.5" | 10x 2.5" |
| Drive Type | SAS/SATA | SAS/SATA |
| RAID Type | Hardware | Hardware |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 |
| Storage Cores | 8 | 8 |
| Memory | 16GB | 16GB |
| Network Interfaces | 2x 10GbE | 2x 10GbE |
| OS Drives | Dual Disk on Chip (Redundant) | Dual Disk on Chip (Redundant) |
| Power Supply | Dual Hot-Plug 500W (Redundant) | Dual Hot-Plug 500W (Redundant) |
| Cooling | 3x Counter-Rotation Fans | 5x Counter-Rotation Fans |
| Dimensions | Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 19.85" (503 mm) |
Height 1.7" (43 mm) Width 17.2" (437 mm) Depth 23.5" (597 mm) |
| Weight | 36 lbs (16.33 kg) | 27 lbs (12.25 kg) |
| RoHS | RoHS Compliant | RoHS Compliant |
Didn't find your system model?
Powered by Sanbrick® AtlantisOS
Separate NAS from SAN IO, using diferent RAID and disk technologies.
Thick and Thin provisioning at Storage Pools and Volumes.
Scheduled or on demand to protect your Volumes against human error or Ransomware.
Integration with Windows Active Directory, for large scale of Users and Groups.
Granular access control lists by User and Groups.
NAS to NAS replication, keeping your Shares sync anywhere.
