Storage NAS and SAN appliance for data-intensive enterprise applications,
delivering high performance and scalability, designed for virtualization,
file sharing and infrastructure backups.
Explore all specs of Magnetar Series today!
Learn More
Buy Now
Why Magnetar Series?
-
File Sharing, Backup Hybrid
-
Virtualization SSD

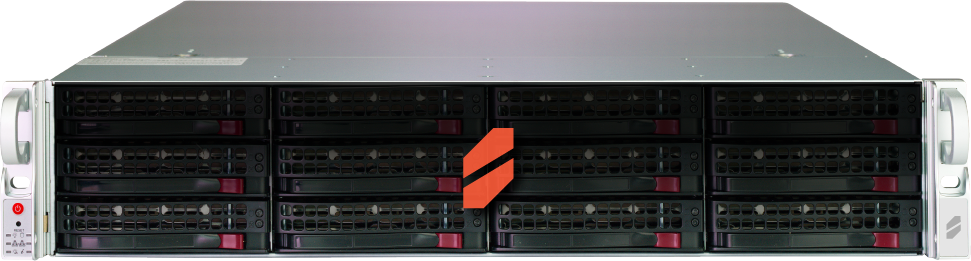

Magnetar MA-HR12-H
Hybrid system disk trays allows using SAS and SSD hard disk technology. Supporting large disks gives large scalability with best cost benefit.
Designed and optimized for file sharing and backup, improves data collaboration between users and deliver large scale storage for backups.
System could also be used for virtualization with most popular virtualization software vendors like Vmware, Citrix Xen and Microsoft Hyper-V.

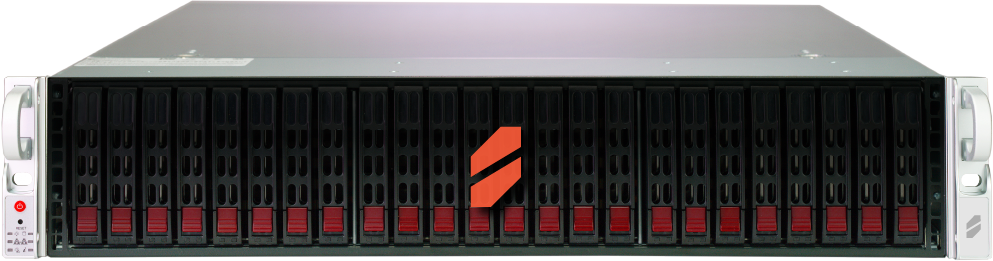

Magnetar MA-FR24-H
Designed and optimized for virtualization with major players like VMware, Citrix Xen or Microsoft Hyper-V, with low latency, it offers high IOPS performance and large-scale storage to accommodate dozens of virtual machines.
The system can also be used to backup repositories and share data between users in conjunction with virtualization monetizing available storage.
Processing
Built with 24 storage cores, improves file and block level of data sharing and could be expandable up to 48 storage cores.
RAID Levels
Equipped with SAS Raid Hardware Controller, with 8 GB of cache and an power backup unit to prevent data loss in case of power failure.
Supporting raid levels 0, 1, 5, 6, 10, 50, 60 to adapt any needs and delivering huge capacity and also data protection.
Scalability
Base system equipped with 24 hot-swap disk bays on Magnetar MA-FR24-H and 12 on Magnetar MA-HR12-H, allows to be scalable up to 240 hard disk bays with additional JBOD enclosures.
Connectivity
With dual 10GbE ports, allows fault tolerance connection with huge speed data transfers.
Magnetar Series, could also be equipped with more network ports with speeds 10GbE, 25GbE, 100GbE or Fibre Channel ports of 16GFC or 32GFC.
Full Specifications
|
Magnetar MA-HR12-H
Best for File Sharing and Backups
|
Magnetar MA-FR24-H
Best for Virtualization
|
|
| Chassis | 2U Rackmount | 2U Rackmount |
| Drive Bays | 12x 3.5" | 24x 2.5" |
| Drive Type | SAS/SATA | SAS/SATA |
| RAID Type | Hardware | Hardware |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 |
| Storage Cores | 24 (Xeon) | 24 (Xeon) |
| Memory | 32 GB | 64 GB |
| Network Interfaces | 2x 10GbE | 2x 10GbE |
| OS Drives | Dual Hot-Swap SSD | Dual Hot-Swap SSD |
| Power Supply | Dual Hot-Plug 920W - Platinum Certified | Dual Hot-Plug 920W - Platinum Certified |
| Cooling | 3x High-Performance Fans | 3x High-Performance Fans |
| Dimensions | Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 25.5" (647 mm) |
Height 3.5" (89 mm) Width 17.2" (437 mm) Depth 24.8" (630 mm) |
| Weight | 55 lbs (24.95 kg) | 53 lbs (24.04 kg) |
| RoHS | RoHS Compliant | RoHS Compliant |
Didn't find your system model?
Powered by Sanbrick® AtlantisOS
Separate NAS from SAN IO, using diferent RAID and disk technologies.
Thick and Thin provisioning at Storage Pools and Volumes.
Scheduled or on demand to protect your Volumes against human error or Ransomware.
Integration with Windows Active Directory, for large scale of Users and Groups.
Granular access control lists by User and Groups.
NAS to NAS replication, keeping your Shares sync anywhere.
